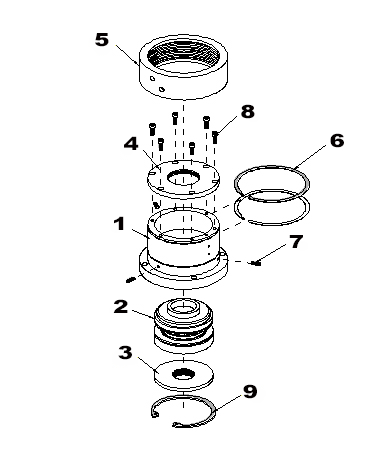

20022 ROTARY AIR COLLET CLOSER PARTS LIST
| |
|
 |
|
|
| |
|
|
|
|
| |
|
| ITEM |
QTY |
PART NUMBER |
PART NAME |
| 1 |
1 |
30109 |
BODY |
| 2 |
1 |
000179 |
PISTON CARTRIDGE ASSEMBLY |
| 3 |
1 |
30107 |
COLLET NUT |
| 4 |
1 |
30101 |
CAP WITH 133 O RING |
| 5 |
1 |
30110 |
PRESSURE CUFF WITH 3 242 O RINGS |
| 6 |
2 |
30116 |
SNAP RING |
| 7 |
3 |
30115 |
8-32 x 1/4 SOCKET SET SCREW |
| 8 |
6 |
30114 |
10-32 x 5/8 SOCKET HEAD CAP SCREW |
| 9 |
1 |
30117 |
SNAP RING |
| |
|
50003 |
O-RING KIT MODEL 20022 |
|
|
|
